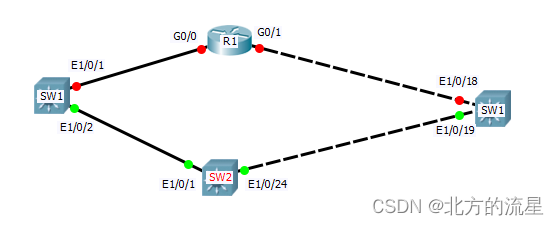

实训内容：使用相关技术将SW1交换机模拟为internet交换机，实现SW1模拟internet路由表和SW1内部业务路由表隔离，internet路由表位于VPN实例名称internet内。

一、基础配置：

SW1配置：

SW1#conf

SW1(config)#int l

SW1(config-if-loopback1)#ip add 1.1.1.1 255.255.255.255

SW1(config)#vlan 10;20

SW1(config)#vlan 4092;4091

SW1(config)#int vlan 10

SW1(config-if-vlan10)#ip add 192.168.10.1 255.255.255.252

SW1(config-if-vlan10)#int vlan 20

SW1(config-if-vlan20)#ip add 172.16.1.1 255.255.255.252

SW1(config-if-vlan20)# int l1

SW1(config-if-loopback1)#ip add 1.1.1.1 255.255.255.255

SW1(config-if-loopback1)#int e1/0/1

SW1(config-if-ethernet1/0/1)#sw acc vlan 10

Set the port Ethernet1/0/1 access vlan 10 successfully

SW1(config-if-ethernet1/0/1)#

SW1(config-if-ethernet1/0/1)#int e1/0/2

SW1(config-if-ethernet1/0/2)#sw acc vlan 20

Set the port Ethernet1/0/2 access vlan 20 successfully

SW1(config-if-ethernet1/0/2)#int e1/0/18

SW1(config-if-ethernet1/0/18)#sw acc vlan 4091

Set the port Ethernet1/0/18 access vlan 4091 successfully

SW1(config-if-ethernet1/0/18)#int e1/0/19

SW1(config-if-ethernet1/0/19)#sw acc vlan 4092

Set the port Ethernet1/0/19 access vlan 4092 successfully

SW1(config-if-ethernet1/0/2)#exit

SW1(config)#

SW1(config)#ip vrf internet

SW1(config)#int vlan 4091

SW1(config-if-vlan4091)#ip vrf forwarding internet

SW1(config-if-vlan4091)#ip add 202.11.1.1 255.255.255.252

SW1(config-if-vlan4091)#exi

SW1(config)#int vlan 4092

SW1(config-if-vlan4092)#ip vrf forwarding internet

SW1(config-if-vlan4092)#ip add 222.11.1.1 255.255.255.252

SW1(config-if-vlan4092)#exi

SW1(config)#exi

SW1#wr

SW2配置：

SW2#con

SW2(config)#vlan 10;4090

SW2(config)#int vlan 10

SW2(config-if-vlan10)#

SW2(config-if-vlan10)#ip add 192.168.10.2 255.255.255.252

SW2(config-if-vlan10)#int vlan 4090

SW2(config-if-vlan4090)#ip add 222.11.1.2 255.255.255.252

SW2(config-if-vlan4090)#int l1

SW2(config-if-loopback1)#ip add 2.2.2.2 255.255.255.255

SW2(config-if-loopback1)#int e1/0/1

SW2(config-if-ethernet1/0/1)#sw acc vlan 10

Set the port Ethernet1/0/1 access vlan 10 successfully

SW2(config-if-ethernet1/0/1)#

SW2(config-if-ethernet1/0/1)# int e1/0/24

SW2(config-if-ethernet1/0/24)#sw acc vlan 4090

Set the port Ethernet1/0/24 access vlan 4090 successfully

SW2#wr

R1配置：

Router>ena

Router_config#hostname r1

r1_config#INT G0/0

r1_config_g0/0#ip add 172.16.1.2 255.255.255.252

r1_config_g0/0#no sh

r1_config_g0/0#int g0/1

r1_config_g0/1#ip add 202.11.1.2 255.255.255.252

r1_config_g0/1#no sh

r1_config_g0/1#int l0

r1_config_l0#ip add 3.3.3.3 255.255.255.255

r1_config_l0#no sh

r1_config_l0#exit

r1 #wr

二、路由配置：

SW1配置：

SW1#conf

SW1(config)#router ospf 1

SW1(config-router)#router-id 1.1.1.1

SW1(config-router)#network 192.168.10.0 0.0.0.3 ar 0

SW1(config-router)#network 172.16.1.0 0.0.0.3 ar 0

SW1(config-router)#network 1.1.1.1 0.0.0.0 ar 0

SW1(config-router)#exit

SW1(config)#ip route vrf internet 0.0.0.0 0.0.0.0 202.11.1.2

SW1(config)#ip route vrf internet 0.0.0.0 0.0.0.0 222.11.1.2

SW1(config)#exit

SW1#wr

SW2配置：

SW2#conf

SW2(config)#router ospf 1

SW2(config-router)#router-id 2.2.2.2

SW2(config-router)#network 192.168.10.0 0.0.0.3 ar 0

SW2(config-router)#network 2.2.2.2 0.0.0.0 ar 0

SW2(config-router)#default-information originate

SW2(config-router)#exit

SW2(config)#ip route 0.0.0.0 0.0.0.0 222.11.1.1

SW2(config)#exit

SW2#wr

R1配置：

r1#conf

r1_config#router ospf 1

r1_config_ospf_1#router-id 3.3.3.3

r1_config_ospf_1#network 172.16.1.0 255.255.255.252 ar 0

r1_config_ospf_1#network 3.3.3.3 255.255.255.255 ar 0

r1_config_ospf_1#default-information originate

r1_config_ospf_1#exi

r1_config#ip route 0.0.0.0 0.0.0.0 202.11.1.1

r1_config#exi

r1#wr

三、显示路由信息：

SW1路由信息：

SW1#show ip rou

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP

       O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

       * - candidate default

Gateway of last resort is 192.168.10.2 to network 0.0.0.0

O*E2    0.0.0.0/0 [110/10] via 192.168.10.2, Vlan10, 00:02:28  tag:0

C       1.1.1.1/32 is directly connected, Loopback1  tag:0

O       2.2.2.2/32 [110/2] via 192.168.10.2, Vlan10, 00:14:39  tag:0

O       3.3.3.3/32 [110/2] via 172.16.1.2, Vlan20, 00:16:29  tag:0

C       127.0.0.0/8 is directly connected, Loopback  tag:0

C       172.16.1.0/30 is directly connected, Vlan20  tag:0

C       192.168.10.0/30 is directly connected, Vlan10  tag:0

Total routes are : 7 item(s)

SW2路由信息：

SW2(config)#show ip rou

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP

       O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

       * - candidate default

Gateway of last resort is not set

S*      0.0.0.0/0 [1/0] via 222.11.1.1, Vlan4090  tag:0

O       1.1.1.1/32 [110/2] via 192.168.10.1, Vlan10, 00:22:47  tag:0

C       2.2.2.2/32 is directly connected, Loopback1  tag:0

O       3.3.3.3/32 [110/3] via 192.168.10.1, Vlan10, 00:23:39  tag:0

C       127.0.0.0/8 is directly connected, Loopback  tag:0

O       172.16.1.0/30 [110/2] via 192.168.10.1, Vlan10, 00:25:46  tag:0

C       192.168.10.0/30 is directly connected, Vlan10  tag:0

C       222.11.1.0/30 is directly connected, Vlan4090  tag:0

Total routes are : 8 item(s)

SW2(config)#

R1路由信息：

r1_config#show ip rou

Codes: C - connected, S - static, R - RIP, B - BGP, BC - BGP connected

       D - BEIGRP, DEX - external BEIGRP, O - OSPF, OIA - OSPF inter area

       ON1 - OSPF NSSA external type 1, ON2 - OSPF NSSA external type 2

       OE1 - OSPF external type 1, OE2 - OSPF external type 2, L - Local

       DHCP - DHCP type, L1 - IS-IS level-1, L2 - IS-IS level-2

       IA - ISIS inter-level, I - IPSEC type

VRF ID: 0

S      0.0.0.0/0            [1,0] via 202.11.1.1(on GigaEthernet0/1)

O      1.1.1.1/32           [110,2] via 172.16.1.1(on GigaEthernet0/0)

O      2.2.2.2/32           [110,3] via 172.16.1.1(on GigaEthernet0/0)

C      3.3.3.3/32           is directly connected, Loopback0

C      172.16.1.0/30        is directly connected, GigaEthernet0/0

O      192.168.10.0/30      [110,2] via 172.16.1.1(on GigaEthernet0/0)

C      202.11.1.0/30        is directly connected, GigaEthernet0/1

五、验证：

SW1#ping vrf internet 1.1.1.1

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 33/39/50 ms

SW1#ping vrf internet 2.2.2.2

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 0/9/33 ms

SW1#ping vrf internet 3.3.3.3

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 0/9/16 ms

SW1#ping vrf internet 202.11.1.2

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 202.11.1.2, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 0/3/16 ms

SW1#ping vrf internet 222.11.1.2

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 222.11.1.2, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 0/0/0 ms

SW2#ping 202.11.1.1

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 202.11.1.1, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 0/3/16 ms

SW2#

SW2#ping 202.11.1.2

Type ^c to abort.

Sending 5 56-byte ICMP Echos to 202.11.1.2, timeout is 2 seconds.

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 0/0/0 ms

r1_config#

r1_config#ping 222.11.1.1

PING 222.11.1.1 (222.11.1.1): 56 data bytes

!!!!!

--- 222.11.1.1 ping statistics ---

5 packets transmitted, 5 packets received, 0% packet loss

round-trip min/avg/max = 1/3/12 ms

r1_config#ping 222.11.1.2

PING 222.11.1.2 (222.11.1.2): 56 data bytes

!!!!!

--- 222.11.1.2 ping statistics ---

5 packets transmitted, 5 packets received, 0% packet loss

round-trip min/avg/max = 1/1/1 ms
