1. 背景

最近想写个小应用，有个类似抽奖转盘的控件需要实现，因此记录和分享这个实现过程。一开始打算使用自定义view来写的，毕竟之前写过，后来写了一半，发现SurfaceView是一个专门为频繁绘制图形而提供的高性能类，因此决定改为SurfaceView来实现。

使用硬件：Nexus7 2013版，十年前的平板了，性能表现还行。

2. 效果预览

按住中间的按钮开始转动灯盘，停止后加权两个灯盘的数字，获得加权和进行显示，效果如下：

3. 实现想法和思路

由于图层的属性约束，因此绘制图形需要先从底层开始绘制，保障绘制顺序，那么按照所设计的转盘，分别从下到上的图层为：

• 背景圆盘

• 外层内容 与 内层 数字栅格

• 按钮图层

• 数字总和

其中，内层的数字栅格具有演示效果，考虑在灯盘转动过程中，将整个内层栅格全部置灰，以增强视觉对比效果，同时通过控制色块的位置，制造数字灯盘转动的效果，而灯盘转灯的间隔，则根据SurfaceView中的刷新线程间隔来进行控制。

考虑到转盘的整体效果，存在三种状态：初始态 - > 运行态 - > 等待态

初始态表示未发生过启动事件，无选中表现在界面，运行态表示灯盘转动过程，界面需要有对比和动画效果，等待态表示运行结束，选中结果保留在屏幕上。

因此，基于以上考虑，单独实现一个状态机来配合控制状态切换。

4. 代码实现

考虑到代码的灵活统一和可阅读性，我们除了状态机，还将外层内容，内层数字栅格，按钮及数字图层抽象为三个类，方便随时调整内部参数。

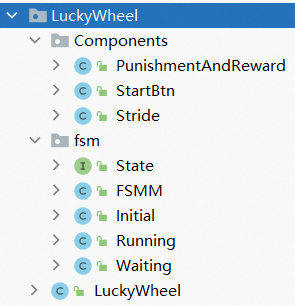

代码目录结构如下：

Component，各图层要素抽象类内容包；

fsm，状态机；

LuckyWheel, GUI绘制及逻辑控制。

4.1图层内容抽象

4.1.1外层内容

外圈内容抽象，包含画笔，背景颜色，以及要定义显示的内容元素。

因为格子并非标准的矩形，因此需要使用path类进行绘制，利用弧度绘制显示，因此需要存储内外相切圆的半径。

将UI和文字的path存储至此类中，方便重复利用。

public class PunishmentAndReward {public int itemsNum;public float bg_out_radius;public float bg_in_radius;public float txt_radius;public final String[] txt_array= {"文字A","文字A","文字A","文字A","文字A","文字A","文字A","文字A"};public List layer_list = new ArrayList<>();public List text_list = new ArrayList<>();public Paint mPaintPRLayer,mPaintText;public final int PRsColorOne = 0xff60c5ba;public final int PRsColorTwo = 0xffffc952;public final int PRsColorThree = 0xffa5dff9;public final int PRsColorFour = 0xffef5285;public PunishmentAndReward(){itemsNum = txt_array.length;mPaintPRLayer = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintPRLayer.setStyle(Paint.Style.FILL);mPaintText = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintText.setStrokeWidth(2);mPaintText.setColor(Color.WHITE);mPaintText.setTextAlign(Paint.Align.CENTER);mPaintText.setTextSize(45);mPaintText.setStyle(Paint.Style.FILL);}
}

4.2.2 内层及数字内容

public class Stride {public int itemsNum;public float bg_out_radius;public float bg_in_radius;public float txt_radius;public final String[] txt_array= {"0", "8", "3", "7" ,"4", "9", "2", "1", "5", "10","6", "3", "1", "12","11","6", "8", "1", "10", "5","12","4","9","1","8","2","7","9","10","6","5","7","4","12","11","3","2","6","9","1"};public List layer_list = new ArrayList<>();public List text_list = new ArrayList<>();public final int defaultZeroColor = 0xff41D3BD;public final int defaultColorOne = 0xff090707;public final int defaultColorTwo = 0xffE53A40;public final int unselectedColor = 0xff9baec8;public final int selectedColor = 0xffffc952;public Paint mPaintStrideLayer, mPaintText;public Stride(){itemsNum = txt_array.length;mPaintStrideLayer = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintStrideLayer.setStyle(Paint.Style.FILL);mPaintText = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintText.setStrokeWidth(2);mPaintText.setColor(Color.WHITE);mPaintText.setTextAlign(Paint.Align.CENTER);mPaintText.setTextSize(55);mPaintText.setStyle(Paint.Style.STROKE);}}

4.2.3按钮内容

由于按钮有触摸事件，为了限制触发事件只在按钮圆圈内生效，需要使用Region类进行判断。

public class StartBtn {public float mRadius=0;public Paint mPaintStartBtn;public Paint mPaintTextBg;public Paint mPaintText;public float offsetText;public Path mPath = new Path();public Region mRegion = new Region();public StartBtn(){mPaintStartBtn = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintStartBtn.setStyle(Paint.Style.FILL);mPaintStartBtn.setColor(0xff1ec0ff);mPaintTextBg = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintTextBg.setStyle(Paint.Style.FILL);mPaintTextBg.setColor(0xff1ec0ff);mPaintText = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintText.setStyle(Paint.Style.FILL);mPaintText.setColor(Color.WHITE);mPaintText.setTextAlign(Paint.Align.CENTER);}public void calc_path(){mPath.addCircle(0,0,mRadius, Path.Direction.CW);
//        Log.i("TAG", "calc_path: "+mRadius);mRegion.setPath(mPath,new Region(-(int)mRadius,-(int)mRadius,(int)mRadius,(int)mRadius));mPaintText.setTextSize(mRadius);offsetText = mRadius/4;}

4.2状态机

4.2.1接口定义

动画控制原理只需要控制不同时刻的颜色变化即可，因此状态接口只需要定义颜色接口。

public interface State {int[] pickStridesColors();    //内圈栅格颜色int[] pickPRsColors();        //外圈栅格颜色
}

4.2.2状态机控制器

使用单例模式做控制器，实现基本的状态切换能力。

public class FSMM implements State{private final String TAG = "FSMM";private static FSMM instalce = null;private final Initial initialState;private final Running runningState;private final Waiting waitingState;private State state;public final String str_initial = "state_initial";public final String str_running = "state_running";public final String str_waiting = "state_waiting";public final int[] selected_flags = {0,1};public Stride strideObj = new Stride();public PunishmentAndReward punRewObj = new PunishmentAndReward();public StartBtn startBtn = new StartBtn();public static FSMM getInstance(){if (null == instalce){synchronized (FSMM.class){if (null == instalce){instalce = new FSMM();}}}return instalce;}private void init(){Log.i(TAG, "init: FSMM 初始化完成 ...");}private FSMM(){initialState = new Initial(this);runningState = new Running(this);waitingState = new Waiting(this);this.state = initialState;}public void setState(State state){Log.i(TAG, "setState: before --> " + getStateString());this.state = state;Log.i(TAG, "setState: after --> " + getStateString());}private State getState(){return this.state;}public State getStateByString(String str){switch (str){case str_initial:return initialState;case str_running:return runningState;case str_waiting:return waitingState;default:Log.i(TAG, "getStateByString: err here");return null;}}public String getStateString(){if (getState() instanceof Initial){return str_initial;}else if (getState() instanceof Running){return str_running;}else if (getState() instanceof Waiting){return str_waiting;}else {return "unknown_state";}}@Overridepublic int[] pickStridesColors() {return state.pickStridesColors();}@Overridepublic int[] pickPRsColors() {return state.pickPRsColors();}
}

4.2.3初始状态定义

初始咋红台下，只要提供固定颜色即可，特殊颜色如内圈的0栅格，额外设置即可。

public class Initial implements State{private final String TAG = "Initial";FSMM fsmm ;public Initial(FSMM fsmm) {this.fsmm = fsmm;}@Overridepublic int[] pickStridesColors() {int[] colors = new int[fsmm.strideObj.itemsNum];colors[0] = fsmm.strideObj.defaultZeroColor;for (int i = 1; i < fsmm.strideObj.itemsNum; i++){if (i % 2 == 0){colors[i] = fsmm.strideObj.defaultColorTwo;}else {colors[i] = fsmm.strideObj.defaultColorOne;}}return colors;}@Overridepublic int[] pickPRsColors() {int[] colors = new int[fsmm.punRewObj.itemsNum];colors[0] = fsmm.punRewObj.PRsColorOne;colors[1] = fsmm.punRewObj.PRsColorTwo;colors[2] = fsmm.punRewObj.PRsColorOne;colors[3] = fsmm.punRewObj.PRsColorThree;colors[4] = fsmm.punRewObj.PRsColorFour;colors[5] = fsmm.punRewObj.PRsColorTwo;colors[6] = fsmm.punRewObj.PRsColorThree;colors[7] = fsmm.punRewObj.PRsColorFour;return colors;}
}

4.2.4运行状态定义

运行状态中，需要灰化每一个数字灯格，表现为未选中状态，每一次运行，都会对选中数字栅格的颜色进行改变，由于我们设计的是双跑马灯，因此，需要FSMM控制器中定义int[] 来存储位置数字，每调运一次接口，选中位置标记分别++和--，并对栅格位置的颜色进行相应的改变。

public class Running implements State {private final String TAG = "Running";FSMM fsmm ;public Running(FSMM fsmm) {this.fsmm = fsmm;}@Overridepublic int[] pickStridesColors() {int[] selected_flags = fsmm.selected_flags;int[] colors = new int[fsmm.strideObj.itemsNum];selected_flags[0]++;selected_flags[1]--;if (selected_flags[1] == selected_flags[0]){selected_flags[0]++;}if (selected_flags[0] > 39){selected_flags[0] = 0;}if (selected_flags[0] < 0){selected_flags[0] = 39;}if (selected_flags[1] > 39){selected_flags[1] = 0;}if (selected_flags[1] < 0){selected_flags[1] = 39;}//        Log.i(TAG, "pickStridesColors: "+ selected_flags[0]+"--"+selected_flags[1]);for (int i=0;i

4.2.5等待状态定义

等待装态需要做的事情为恢复灯盘的原本颜色，同时保留被选中栅格位置的颜色。

public class Waiting implements State{private final String TAG = "Waiting";FSMM fsmm;public Waiting(FSMM fsmm) {this.fsmm = fsmm;}@Overridepublic int[] pickStridesColors() {int[] colors = new int[fsmm.strideObj.itemsNum];for (int i = 0; i < fsmm.strideObj.itemsNum; i++){if (i % 2 == 0){colors[i] = fsmm.strideObj.defaultColorTwo;}else {colors[i] = fsmm.strideObj.defaultColorOne;}if (i == fsmm.selected_flags[0] || i == fsmm.selected_flags[1]){colors[i] = fsmm.strideObj.selectedColor;}}if (0 != fsmm.selected_flags[0] && 0 != fsmm.selected_flags[1]){colors[0] = fsmm.strideObj.defaultZeroColor;}return colors;}@Overridepublic int[] pickPRsColors() {int[] colors = new int[fsmm.punRewObj.itemsNum];colors[0] = fsmm.punRewObj.PRsColorOne;colors[1] = fsmm.punRewObj.PRsColorTwo;colors[2] = fsmm.punRewObj.PRsColorOne;colors[3] = fsmm.punRewObj.PRsColorThree;colors[4] = fsmm.punRewObj.PRsColorFour;colors[5] = fsmm.punRewObj.PRsColorTwo;colors[6] = fsmm.punRewObj.PRsColorThree;colors[7] = fsmm.punRewObj.PRsColorFour;return colors;}
}

4.3基于SurfaceView的转盘代码实现

代码中使用了initBGCounter等需要注意下，本意是为了避免重复绘制造成性能损耗，因为SurfaceView具有多重缓冲的特性，因此如果想固定某个背景不再重新绘制，需要初始化三次画面，因此代码中使用了个计数器保证缓冲全部被填充。

public class LuckyWheel extends SurfaceView implements SurfaceHolder.Callback ,Runnable{private final String TAG = "LuckyWheel";private final Context mContext;private Paint mPaintBackground;private SurfaceHolder mSurfaceHolder;Canvas mCanvas;private float mWidth, mHeight;boolean isDrawing= false, isStarting= false;;float mBackLayerRadius;private int initBGCounter = 0;  //针对三缓冲而设置的计数器private int initPRLayerCounter =0;public LuckyWheel(Context context) {super(context);this.mContext = context;}public LuckyWheel(Context context, AttributeSet attrs) {super(context, attrs);this.mContext = context;}public LuckyWheel(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);this.mContext = context;}@Overrideprotected void onSizeChanged(int w, int h, int oldw, int oldh) {super.onSizeChanged(w, h, oldw, oldh);mWidth = getWidth();mHeight = getHeight();calc_paras();   //计算标准参数init();calc_punishment_and_reward_paras(FSMM.getInstance().punRewObj.bg_out_radius,FSMM.getInstance().punRewObj.bg_in_radius,FSMM.getInstance().punRewObj.txt_radius);calc_stride_layer_paras(FSMM.getInstance().strideObj.bg_out_radius,FSMM.getInstance().strideObj.bg_in_radius,FSMM.getInstance().strideObj.txt_radius);}@Overridepublic void surfaceCreated(@NonNull SurfaceHolder holder) {Log.i(TAG, "surfaceCreated: ");isDrawing = true;new Thread(this).start();}@Overridepublic void surfaceChanged(@NonNull SurfaceHolder holder, int format, int width, int height) {}@Overridepublic void surfaceDestroyed(@NonNull SurfaceHolder holder) {Log.i(TAG, "surfaceDestroyed: ");isDrawing = false;}@Overridepublic void run() {Log.i(TAG, "run: 运行开始");long t = 0;while (isDrawing){t = System.currentTimeMillis();try {mCanvas = mSurfaceHolder.lockCanvas();axis_init();draw_background();draw_punishment_and_reward_layer();draw_strides_layer();draw_start_button_layer();}finally {if (mCanvas!=null){mSurfaceHolder.unlockCanvasAndPost(mCanvas);}}
//            Log.i(TAG, "run: 运行中");try {Thread.sleep(Math.max(0, 5-(System.currentTimeMillis()-t)));} catch (InterruptedException e) {e.printStackTrace();}}}private void init(){Log.d(TAG, "init: hehhehe");mSurfaceHolder = getHolder();mSurfaceHolder.addCallback(this);this.setZOrderOnTop(true);  //画布透明处理this.mSurfaceHolder.setFormat(PixelFormat.TRANSLUCENT);setFocusable(true);setFocusableInTouchMode(true);this.setKeepScreenOn(true); //屏幕常亮mPaintBackground = new Paint(Paint.ANTI_ALIAS_FLAG);mPaintBackground.setColor(0xff52616a);mPaintBackground.setStyle(Paint.Style.FILL);FSMM.getInstance().startBtn.mPaintStartBtn.setShadowLayer(FSMM.getInstance().startBtn.mRadius,0,0,0xff0080ff);FSMM.getInstance().startBtn.calc_path();}//坐标原点移动到中间，y轴翻转private void axis_init(){mCanvas.translate(mWidth/2, mHeight/2);
//        mCanvas.scale(1,-1);}private void draw_background(){if (initBGCounter < 4){mCanvas.drawCircle(0,0,mBackLayerRadius,mPaintBackground);mCanvas.drawPath(FSMM.getInstance().startBtn.mPath,FSMM.getInstance().startBtn.mPaintStartBtn);initBGCounter++;}}private void calc_paras(){mBackLayerRadius = mWidth/2;FSMM.getInstance().punRewObj.bg_out_radius = mWidth/30 * 14;FSMM.getInstance().punRewObj.bg_in_radius = mWidth/30 * 11;FSMM.getInstance().punRewObj.txt_radius = (float) (mWidth/30 * 12) ;FSMM.getInstance().strideObj.bg_out_radius = mWidth/30 * 11;FSMM.getInstance().strideObj.bg_in_radius = mWidth/30 * 9;FSMM.getInstance().strideObj.txt_radius = (float)(mWidth/30 * 9.5) ;FSMM.getInstance().startBtn.mRadius = mWidth/30 * 7;}private void draw_strides_layer(){int[] colors = FSMM.getInstance().pickStridesColors();for (int i = 0; i
