定时器计数

/********************************************************************************* @file           : main.c* @brief          : Main program body******************************************************************************* @attention**//* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "hk32f030m.h"
#include "hk32f030m_gpio.h"
#include
#include "stdarg.h"uint16_t CCR1_Val = 5000;
uint16_t CCR2_Val = 2500;
uint16_t CCR3_Val = 1250;
uint16_t CCR4_Val = 625;
uint16_t PrescalerValue = 0;void RCC_Configuration(void);
void GPIO_Configuration(void);
void TIM_Config(void);
void GPIO_TogglePin(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin);
void TIM6_IRQHandler(void);int main(void)/* Infinite loop */
{RCC_Configuration();GPIO_Configuration();TIM_Config();while (1){}
}
/*配置时钟*/
void RCC_Configuration(void)
{RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOA, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOB, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOC, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOD, ENABLE );RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM6 , ENABLE);
}
/*配置GPIO*/
void GPIO_Configuration(void)
{GPIO_InitTypeDef GPIO_InitStructure;//GPIOA,PA1,PA2,PA3GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3 ;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_OUT;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL ;GPIO_Init(GPIOA, &GPIO_InitStructure);	//GPIOD,PD4GPIO_InitStructure.GPIO_Pin = GPIO_Pin_4;GPIO_Init(GPIOD, &GPIO_InitStructure);
}
/*配置TIMER*/
void TIM_Config(void)
{TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;NVIC_InitTypeDef NVIC_InitStructure;// 预分频器值 // SystemCoreClock = 48M,计数器时钟counter clock = 1 MHz
//  PrescalerValue = (uint16_t) (SystemCoreClock  / 1000000) - 1;// 32MHzPrescalerValue = (uint16_t) (SystemCoreClock  / 10000) - 1;// 3200/* Enable the TIM1 gloabal Interrupt */NVIC_InitStructure.NVIC_IRQChannel = TIM6_IRQn;NVIC_InitStructure.NVIC_IRQChannelPriority = 0; // 中断优先级NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;NVIC_Init(&NVIC_InitStructure);/* Time Base configuration */// 公式：Tout= ((arr+1)*(psc+1))/Tclk// 1s = ((10000+1)*(3200+1))/32000000// 0.5s = ((5000+1)*(3200+1))/32000000TIM_TimeBaseStructure.TIM_Prescaler = PrescalerValue;// 预分频系数 3200TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;// 计数模式：向上计数TIM_TimeBaseStructure.TIM_Period = 5000; // 自动重载值 10000，计数模式为向上计数时，定时器从0开始计数，计数超过到arr时触发定时中断服务函数TIM_TimeBaseStructure.TIM_ClockDivision = 0;TIM_TimeBaseStructure.TIM_RepetitionCounter = 0;TIM_TimeBaseInit(TIM6, &TIM_TimeBaseStructure);/* TIM Interrupts enable */TIM_ITConfig(TIM6, TIM_IT_Update, ENABLE);/* TIM1 counter enable */TIM_Cmd(TIM6, ENABLE);
}
/*配置IO翻转*/
void GPIO_TogglePin(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin)
{/* Check the parameters */assert_param(IS_GPIO_PIN(GPIO_Pin));GPIOx->ODR ^= GPIO_Pin; // 输出翻转
}uint16_t capture = 0;void TIM6_IRQHandler(void)
{if (TIM_GetITStatus(TIM6, TIM_IT_Update) != RESET){TIM_ClearITPendingBit(TIM6, TIM_IT_Update); //每次进入中断都要清空中断标志，否则主函数将无法正常执行/* PA1 toggling with frequency = 50 Hz */GPIO_TogglePin(GPIOD ,GPIO_Pin_4);// PD4 翻转 //		capture = TIM_GetCapture1(TIM1);
//
//    TIM_SetCompare1(TIM1, capture);}
}#ifdef  USE_FULL_ASSERT
/*** @brief  Reports the name of the source file and the source line number*         where the assert_param error has occurred.* @param  file: pointer to the source file name* @param  line: assert_param error line source number* @retval None*/
void assert_failed(uint8_t* file, uint32_t line)
{/* User can add his own implementation to report the file name and line number,tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
}
#endif /* USE_FULL_ASSERT */

公式：Tout= ((arr+1)*(psc+1))/Tclk

1s = ((10000+1)*(3200+1))/32000000

0.5s = 500ms = ((5000+1)*(3200+1))/32000000

实现效果

HK32F030MF4P6定时器计数，分别是从0到10000和0到5000计数

PWM输出

/********************************************************************************* @file           : main.c* @brief          : Main program body******************************************************************************* @attention**//* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "hk32f030m.h"
#include "hk32f030m_gpio.h"
#include
#include "stdarg.h"uint16_t TimerPeriod = 0;
uint16_t Channel1Pulse = 0, Channel2Pulse = 0, Channel3Pulse = 0, Channel4Pulse = 0;void RCC_Configuration(void);
void GPIO_Configuration(void);
void TIM_Config(void);int main(void)/* Infinite loop */
{RCC_Configuration();GPIO_Configuration();TIM_Config();while (1){}
}
/*配置时钟*/
void RCC_Configuration(void)
{RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOA, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOB, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOC, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOD, ENABLE );RCC_APB2PeriphClockCmd(RCC_APB2Periph_TIM1 , ENABLE);
}
/*配置GPIO*/
void GPIO_Configuration(void)
{//GPIOA Configuration: Channel 1N, 2N, 3NGPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3 ;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL ;GPIO_Init(GPIOA, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOA,GPIO_PinSource1,GPIO_AF_3);	GPIO_PinAFConfig(GPIOA,GPIO_PinSource2,GPIO_AF_3);	GPIO_PinAFConfig(GPIOA,GPIO_PinSource3,GPIO_AF_3);	//GPIOC Configuration: Channel 1, 2GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6|GPIO_Pin_7;GPIO_Init(GPIOC, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOC,GPIO_PinSource6,GPIO_AF_3);	GPIO_PinAFConfig(GPIOC,GPIO_PinSource7,GPIO_AF_3);	/*PD3 = TIMER Channel 3*///GPIOD Configuration: Channel 3GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3;GPIO_Init(GPIOD, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOD,GPIO_PinSource3,GPIO_AF_3);	/*PD4 = TIMER Channel 4*///GPIOD Configuration: Channel 4GPIO_InitStructure.GPIO_Pin = GPIO_Pin_4;GPIO_Init(GPIOD, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOD,GPIO_PinSource4,GPIO_AF_3);//	//GPIOB Configuration: BreakGPIO_InitStructure.GPIO_Pin = GPIO_Pin_5;GPIO_Init(GPIOB, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOB,GPIO_PinSource5,GPIO_AF_3);	//	/*PC3 = TIMER Channel 3*/
//	GPIO_IOMUX_PinAFConfig(GPIOC,GPIO_PinSource3,IOMUX_PC3_TIM1CH3);
//	//GPIOC Configuration: Channel 3 PC3
//  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3;
//  GPIO_Init(GPIOC, &GPIO_InitStructure);
//	GPIO_PinAFConfig(GPIOC,GPIO_PinSource3,GPIO_AF_3);
}
/*配置TIMER*/
void TIM_Config(void)
{TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;TIM_OCInitTypeDef  TIM_OCInitStructure;//TIM_BDTRInitTypeDef TIM_BDTRInitStructure;TimerPeriod = (SystemCoreClock / 3200 ) - 1;//SystemCoreClock=32MHZ  // 自动重载值是10000 /* Compute CCR1 value to generate a duty cycle at 50% for channel 1 and 1N */Channel1Pulse = (uint16_t) (((uint32_t) 5 * (TimerPeriod - 1)) / 10);/* Compute CCR2 value to generate a duty cycle at 37.5%  for channel 2 and 2N */Channel2Pulse = (uint16_t) (((uint32_t) 375 * (TimerPeriod - 1)) / 1000);/* Compute CCR3 value to generate a duty cycle at 25%  for channel 3 and 3N */Channel3Pulse = (uint16_t) (((uint32_t) 25 * (TimerPeriod - 1)) / 100);/* Compute CCR4 value to generate a duty cycle at 12.5%  for channel 4 */Channel4Pulse = (uint16_t) (((uint32_t) 125 * (TimerPeriod- 1)) / 1000);/* Time Base configuration */TIM_TimeBaseStructure.TIM_Prescaler = 0;// 预分频系数TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;//向上计数TIM_TimeBaseStructure.TIM_Period = TimerPeriod;// 自动重载值TIM_TimeBaseStructure.TIM_ClockDivision = 0;//一般不使用，默认TIM_CKD_DIV1TIM_TimeBaseStructure.TIM_RepetitionCounter = 0;TIM_TimeBaseInit(TIM1, &TIM_TimeBaseStructure);/* Channel 1, 2,3 and 4 Configuration in PWM mode */TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM2;TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;TIM_OCInitStructure.TIM_OutputNState = TIM_OutputNState_Enable;TIM_OCInitStructure.TIM_Pulse = Channel1Pulse;//设置待装入捕获比较寄存器的脉冲值TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_Low;TIM_OCInitStructure.TIM_OCNPolarity = TIM_OCNPolarity_Low;TIM_OCInitStructure.TIM_OCIdleState = TIM_OCIdleState_Set;TIM_OCInitStructure.TIM_OCNIdleState = TIM_OCIdleState_Reset;TIM_OC1Init(TIM1, &TIM_OCInitStructure);TIM_OCInitStructure.TIM_Pulse = Channel2Pulse;TIM_OC2Init(TIM1, &TIM_OCInitStructure);TIM_OCInitStructure.TIM_Pulse = Channel3Pulse;TIM_OC3Init(TIM1, &TIM_OCInitStructure);TIM_OCInitStructure.TIM_Pulse = Channel4Pulse;TIM_OC4Init(TIM1, &TIM_OCInitStructure);
//  /* Automatic Output enable, Break, dead time and lock configuration*/
//  TIM_BDTRInitStructure.TIM_OSSRState = TIM_OSSRState_Enable;
//  TIM_BDTRInitStructure.TIM_OSSIState = TIM_OSSIState_Enable;
//  TIM_BDTRInitStructure.TIM_LOCKLevel = TIM_LOCKLevel_1;
//  TIM_BDTRInitStructure.TIM_DeadTime = 50;
//  TIM_BDTRInitStructure.TIM_Break = TIM_Break_Enable;
//  TIM_BDTRInitStructure.TIM_BreakPolarity = TIM_BreakPolarity_High;
//  TIM_BDTRInitStructure.TIM_AutomaticOutput = TIM_AutomaticOutput_Enable;//  TIM_BDTRConfig(TIM1, &TIM_BDTRInitStructure);/* TIM1 counter enable */TIM_Cmd(TIM1, ENABLE);/* TIM1 Main Output Enable */TIM_CtrlPWMOutputs(TIM1, ENABLE);}#ifdef  USE_FULL_ASSERT
/*** @brief  Reports the name of the source file and the source line number*         where the assert_param error has occurred.* @param  file: pointer to the source file name* @param  line: assert_param error line source number* @retval None*/
void assert_failed(uint8_t* file, uint32_t line)
{/* User can add his own implementation to report the file name and line number,tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
}
#endif /* USE_FULL_ASSERT */

实验结果

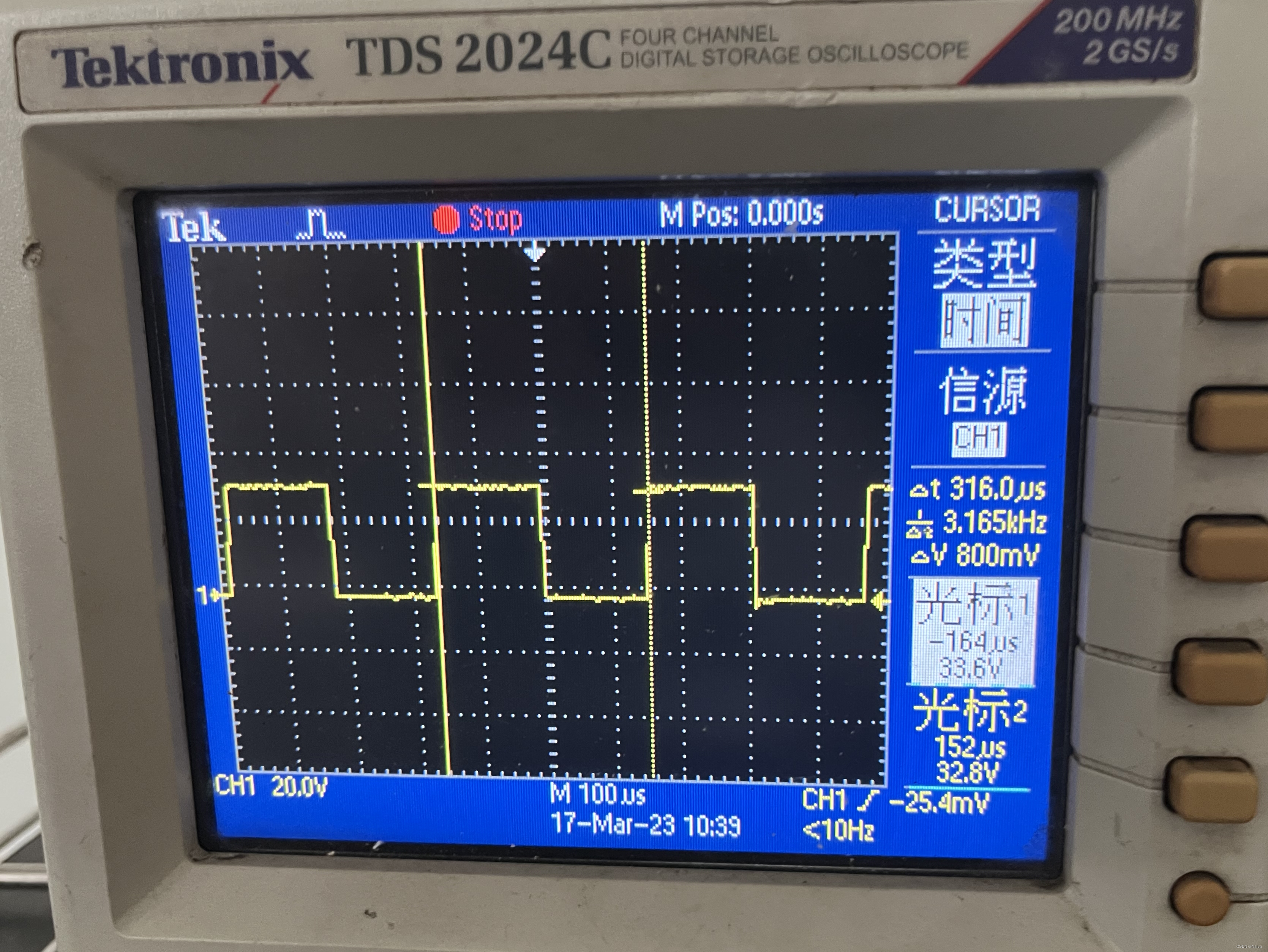

50%占空比

在这里插入图片描述

周期316us怎么来的？

自动重载值、预分频系数和周期计算公式：

公式：Tout= ((arr+1)*(psc+1))/Tclk

Tout 周期/溢出时间单位us
Tclk 系统时钟单位Mhz (这里是32MHZ)

（10000 + 1）*（ 0 + 1 ）/ 32000 000 = 0.00031253s = 31254ms = 312.54us

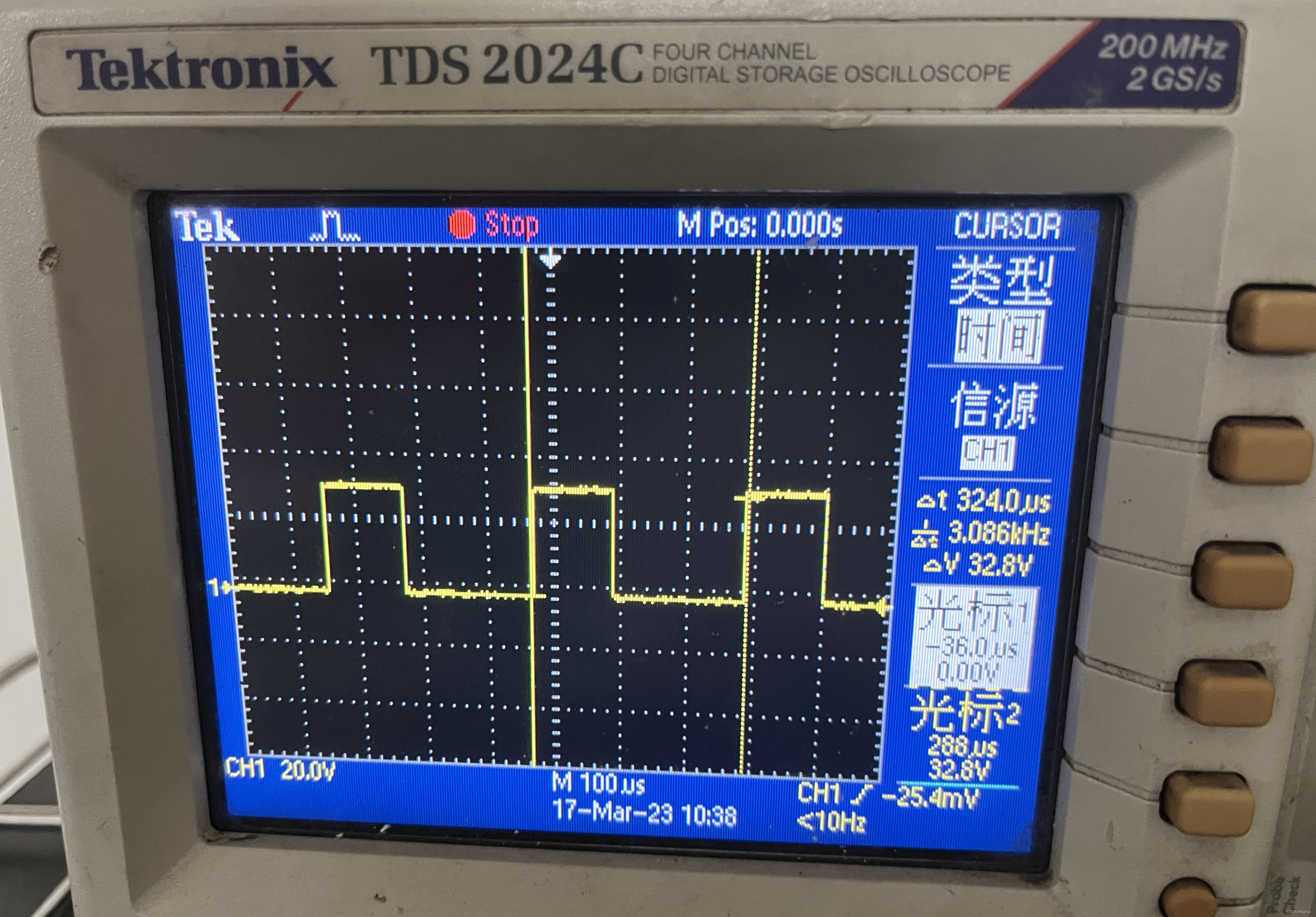

37.5%占空比

在这里插入图片描述

25%占空比

在这里插入图片描述

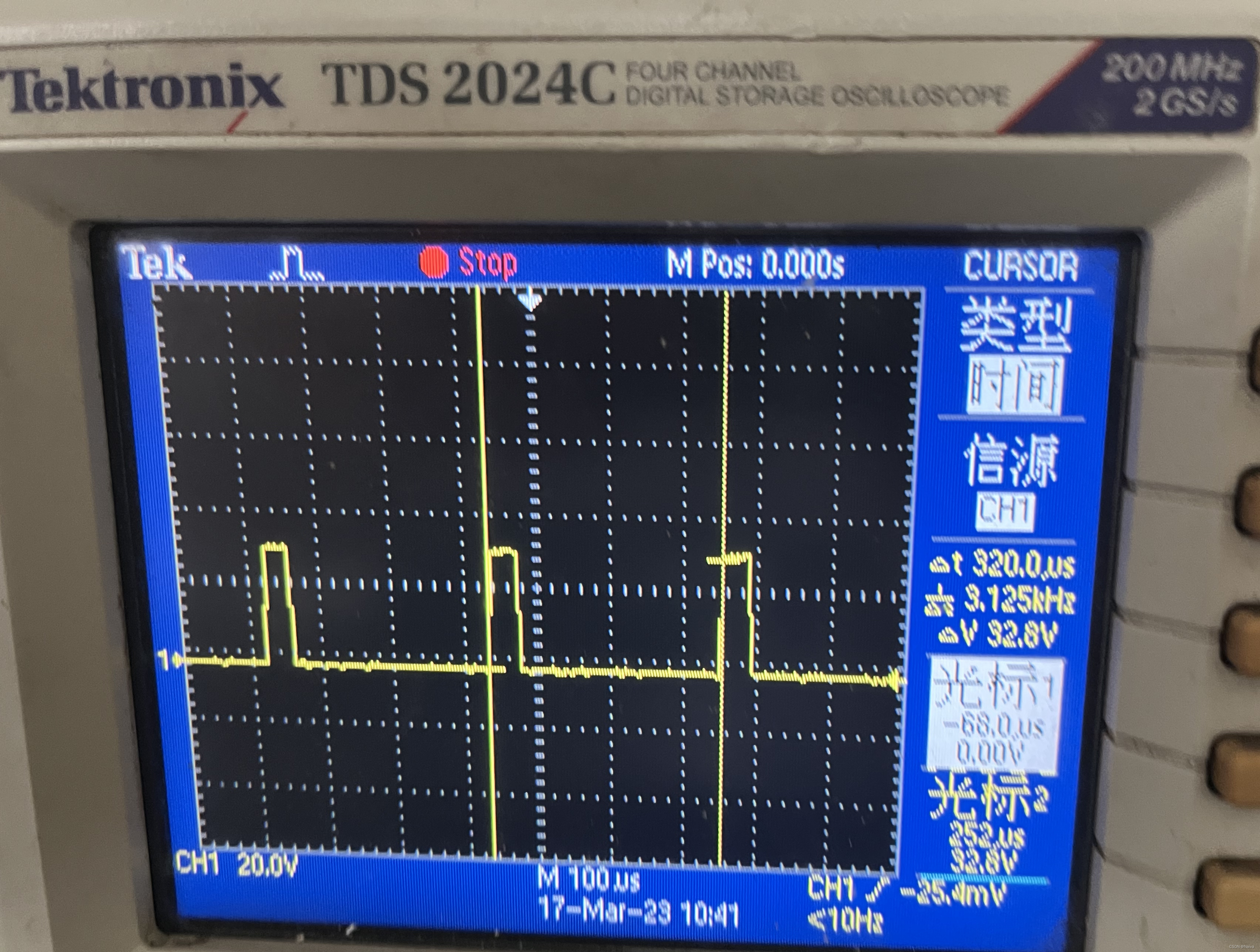

12.5%占空比

在这里插入图片描述

翻转输出

HK32F030MF4P6 定时器TIMER输出翻转

/********************************************************************************* @file           : main.c* @brief          : Main program body******************************************************************************* @attention**//* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "hk32f030m.h"
#include "hk32f030m_gpio.h"
#include
#include "stdarg.h"uint16_t TimerPeriod = 0;  // 自动重载值
uint16_t Channel1Pulse = 0;// 脉冲宽度void RCC_Configuration(void);
void GPIO_Configuration(void);
void TIM_Config(void);int main(void)/* Infinite loop */
{RCC_Configuration();GPIO_Configuration();TIM_Config();while (1){}
}
/*配置时钟*/
void RCC_Configuration(void)
{RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOA, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOB, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOC, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOD, ENABLE );RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM2, ENABLE);
}
/*配置GPIO*/
void GPIO_Configuration(void)
{GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.GPIO_Pin = GPIO_Pin_4;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL ;/*PD4 = TIM2 Channel 1*///GPIOD Configuration: Channel 1GPIO_Init(GPIOD, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOD,GPIO_PinSource4,GPIO_AF_4);
}
/*配置TIMER*/
void TIM_Config(void)
{TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;TIM_OCInitTypeDef  TIM_OCInitStructure;// 频率配置为100KHZ  SystemCoreClock = 32Mhz(内部高速时钟)    自动重载值 = 32Mhz/100 000 -  1 = 3199TimerPeriod = (SystemCoreClock / 100000 ) - 1;/* Compute CCR1 value to generate a duty cycle at 50% for channel 1 */// 脉宽值 // 5*（3199-1）/10 = 1599// duty cycle 占空比为 1/2 = 50%Channel1Pulse = (uint16_t) (((uint32_t) 5 * (TimerPeriod - 1)) / 10); /* Time Base configuration */TIM_TimeBaseStructure.TIM_Prescaler = 0;//预分频系数TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;//向上计数TIM_TimeBaseStructure.TIM_Period = TimerPeriod;//自动重载值3200TIM_TimeBaseStructure.TIM_ClockDivision = 0;TIM_TimeBaseStructure.TIM_RepetitionCounter = 0;TIM_TimeBaseInit(TIM2, &TIM_TimeBaseStructure);/* Channel 1 Configuration in PWM mode */TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_Toggle;//翻转TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;TIM_OCInitStructure.TIM_Pulse = Channel1Pulse;TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_Low;TIM_OC1Init(TIM2, &TIM_OCInitStructure);//TIM_SelectOnePulseMode(TIM2, TIM_OPMode_Single);/* TIM2 counter enable */TIM_Cmd(TIM2, ENABLE);
}#ifdef  USE_FULL_ASSERT
/*** @brief  Reports the name of the source file and the source line number*         where the assert_param error has occurred.* @param  file: pointer to the source file name* @param  line: assert_param error line source number* @retval None*/
void assert_failed(uint8_t* file, uint32_t line)
{/* User can add his own implementation to report the file name and line number,tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
}
#endif /* USE_FULL_ASSERT */

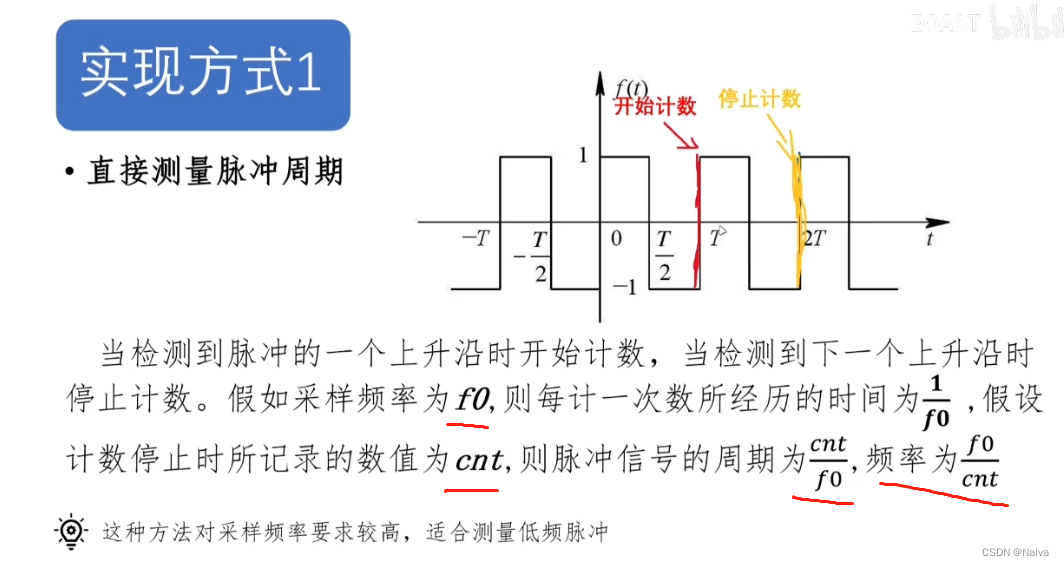

输入捕获

在这里插入图片描述

/********************************************************************************* @file           : main.c* @brief          : Main program body******************************************************************************* @attention**//* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "hk32f030m.h"
#include "hk32f030m_gpio.h"
#include
#include "stdarg.h"USART_InitTypeDef USART_InitStructure;
void RCC_Configuration(void);
void GPIO_Configuration(void);
void TIM_Config(void);
void USART_Configuration(void);
void softWareDelay(void);
void TIM1_CC_IRQHandler(void);
int main(void)/* Infinite loop */
{RCC_Configuration();GPIO_Configuration();TIM_Config();while (1){}
}
/*配置时钟*/
void RCC_Configuration(void)
{RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOA, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOB, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOC, ENABLE );RCC_AHBPeriphClockCmd( RCC_AHBPeriph_GPIOD, ENABLE );RCC_APB2PeriphClockCmd(RCC_APB2Periph_TIM1, ENABLE);
}
/*配置GPIO*/
void GPIO_Configuration(void)
{GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL ;/*PC6 = TIM1 Channel 1*///GPIOC Configuration: Channel 1GPIO_Init(GPIOC, &GPIO_InitStructure);GPIO_PinAFConfig(GPIOC,GPIO_PinSource6,GPIO_AF_3);
}
/*配置TIMER*/
void TIM_Config(void)
{TIM_ICInitTypeDef  TIM_ICInitStructure;NVIC_InitTypeDef NVIC_InitStructure;/* TIM1 configuration: Input Capture mode ---------------------The external signal is connected to TIM1 CH1 pin (PC.06)  The Rising edge is used as active edge,The TIM1 CCR1 is used to compute the frequency value ------------------------------------------------------------ */TIM_ICInitStructure.TIM_Channel = TIM_Channel_1;TIM_ICInitStructure.TIM_ICPolarity = TIM_ICPolarity_Rising; //上升沿触发TIM_ICInitStructure.TIM_ICSelection = TIM_ICSelection_DirectTI;//方向选择定义到TI1上TIM_ICInitStructure.TIM_ICPrescaler = TIM_ICPSC_DIV1;//捕获预分频，多少个上升沿触发一次TIM_ICInitStructure.TIM_ICFilter = 0x0;//数字滤波配置TIM_ICInit(TIM1, &TIM_ICInitStructure);/* TIM enable counter */TIM_Cmd(TIM1, ENABLE);/* Enable the CC1 Interrupt Request */TIM_ITConfig(TIM1, TIM_IT_CC1, ENABLE);/* Enable the TIM1 global Interrupt */NVIC_InitStructure.NVIC_IRQChannel = TIM1_CC_IRQn;NVIC_InitStructure.NVIC_IRQChannelPriority = 0;NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;NVIC_Init(&NVIC_InitStructure);
}uint16_t IC3ReadValue1 = 0, IC3ReadValue2 = 0;
uint16_t CaptureNumber = 0; // 捕获成功/失败 标识位
uint32_t Capture = 0; // 捕获
uint32_t TIM1Freq = 0;//频率
// 定时器1 中断你服务函数
void TIM1_CC_IRQHandler(void)
{ if(TIM_GetITStatus(TIM1, TIM_IT_CC1) == SET) {/* Clear TIM1 Capture compare interrupt pending bit */TIM_ClearITPendingBit(TIM1, TIM_IT_CC1);if(CaptureNumber == 0){/* Get the Input Capture value */IC3ReadValue1 = TIM_GetCapture1(TIM1);CaptureNumber = 1;}else if(CaptureNumber == 1){/* Get the Input Capture value */IC3ReadValue2 = TIM_GetCapture1(TIM1); /* Capture computation */if (IC3ReadValue2 > IC3ReadValue1){Capture = (IC3ReadValue2 - IC3ReadValue1); }else if (IC3ReadValue2 < IC3ReadValue1){Capture = ((0xFFFF - IC3ReadValue1) + IC3ReadValue2); }else{Capture = 0;}/* Frequency computation */ TIM1Freq = (uint32_t) SystemCoreClock / Capture;//频率计算CaptureNumber = 0;}}
}
#ifdef  USE_FULL_ASSERT
/*** @brief  Reports the name of the source file and the source line number*         where the assert_param error has occurred.* @param  file: pointer to the source file name* @param  line: assert_param error line source number* @retval None*/
void assert_failed(uint8_t* file, uint32_t line)
{/* User can add his own implementation to report the file name and line number,tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
}
#endif /* USE_FULL_ASSERT */

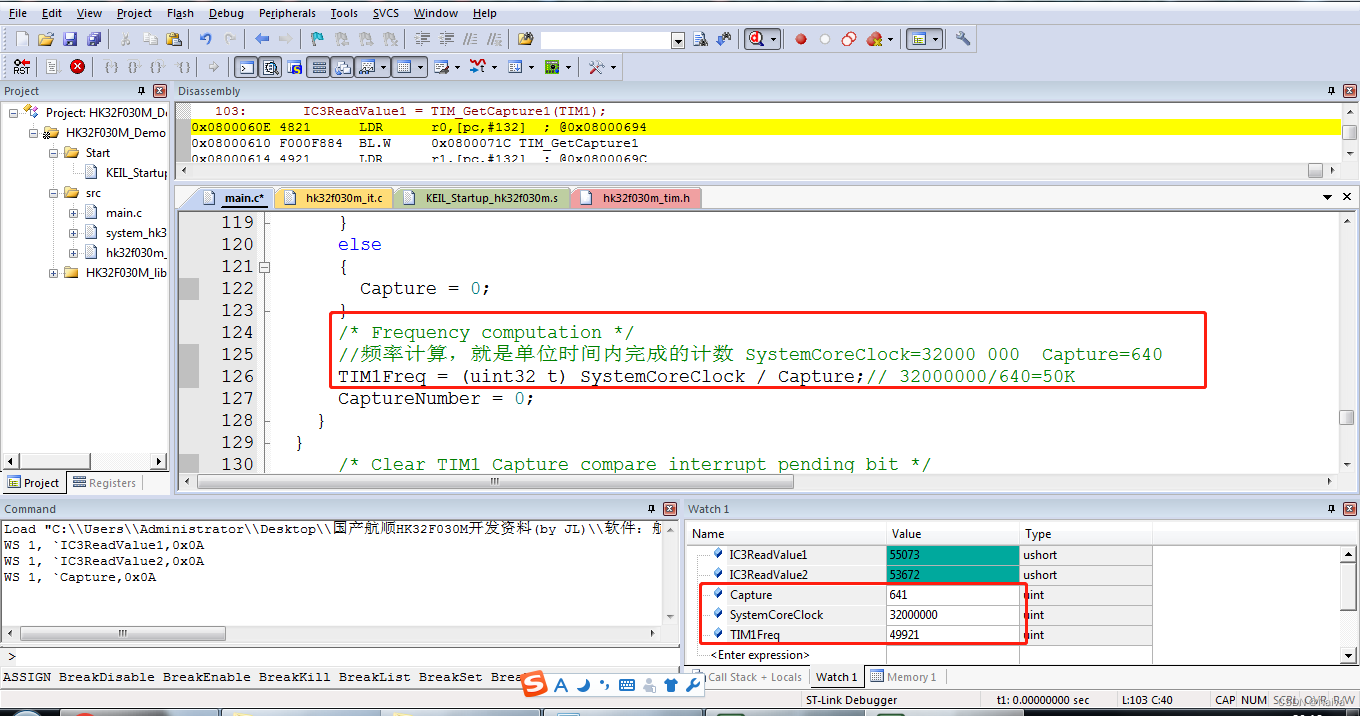

在这里插入图片描述
