ISIS双栈实验

• • 拓扑图
  • 配置
  • 结果测试

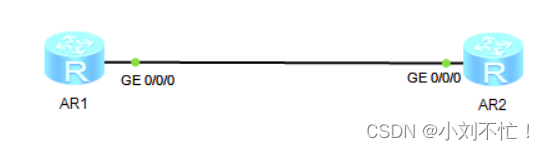

拓扑图

拓扑中直接省略IPv4的配置，只对IPv6进行配置。

配置

AR1：
[Huawei]ipv6
[Huawei]isis 1
[Huawei-isis-1]ipv6 enable topology ipv6
[Huawei-isis-1] network-entity 49.0001.0000.0001.00
[Huawei-isis-1]int g0/0/0
[Huawei-GigabitEthernet0/0/0]dis this
[Huawei-GigabitEthernet0/0/0] ipv6 enable
[Huawei-GigabitEthernet0/0/0] ipv6 address 2001:12::1/64
[Huawei-GigabitEthernet0/0/0] isis ipv6 enable 1
[Huawei]int LoopBack 0
[Huawei-LoopBack0] ipv6 enable
[Huawei-LoopBack0] ipv6 address 1::1/128
[Huawei-LoopBack0] isis ipv6 enable 1

AR2：
[Huawei]ipv6
[Huawei]isis 1
[Huawei-isis-1]ipv6 enable topology ipv6
[Huawei-isis-1] network-entity 49.0001.0000.0002.00
[Huawei-isis-1]int g0/0/0
[Huawei-GigabitEthernet0/0/0]dis this
[Huawei-GigabitEthernet0/0/0] ipv6 enable
[Huawei-GigabitEthernet0/0/0] ipv6 address 2001:12::2/64
[Huawei-GigabitEthernet0/0/0] isis ipv6 enable 1
[Huawei]int LoopBack 0
[Huawei-LoopBack0] ipv6 enable
[Huawei-LoopBack0] ipv6 address 2::2/128
[Huawei-LoopBack0] isis ipv6 enable 1

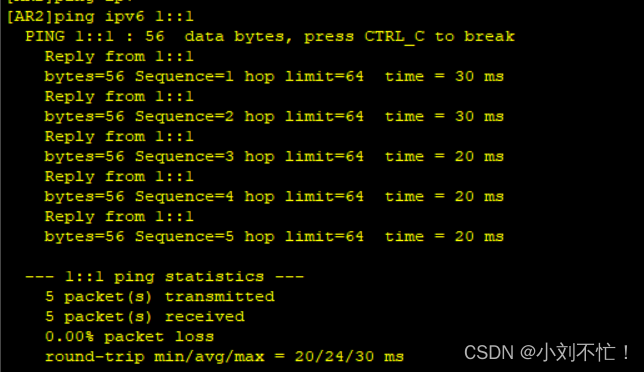

结果测试
